Silicone Wire

  • Silicone Wire
  • Silicone Wire
  • Silicone Wire
Model No.︰26#-10#
Brand Name︰AKITA HILL
Country of Origin︰China
Unit Price︰CNY ¥ 0.5 / m
Minimum Order︰305 m
Share on:

 Total 3 Related Items
123Next

Product Description



TECHNICAL DATA

Nominal voltage:600V

Temperature range:-60~+200

The standard for reference:UL758UL1581UL62

Conductor:26-12AWGTinned copper

Insulation: Silicone

Test by  VW-1 and CSA FT-1

Use:internal wire of appliance or electronic equipment of cooker where exposed to high temperature





SPEC

No.

Conductor diameter

Insulation thickness

Nominal diameter

Max diameter

AWG

NO/mm

mm

mm

mm

mm

10

35/0.45

3.12

0.78

4.70

4.90

12

45/0.32

2.50

0.78

4.10

4.30

14

41/0.25

1.96

0.78

3.60

3.80

16

7/0.50

1.50

0.78

3.10

3.30

18

7/0.40

1.20

0.78

2.80

3.00

20

7/0.32

0.90

0.78

2.50

2.70

22

7/0.254

0.762

0.78

2.40

2.60

24

7/0.20

0.60

0.78

2.20

2.40

26

7/0.16

0.48

0.78

2.10

2.30

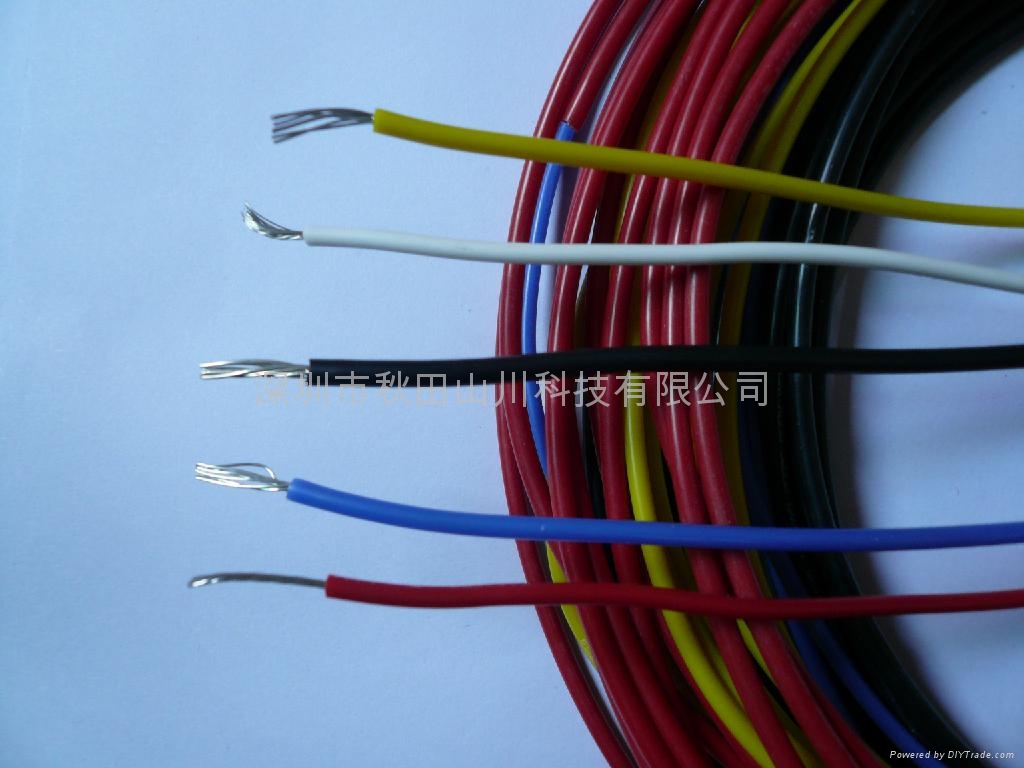

Product Image
